Imported P.I.D micro-computer S.S.R temperature controller of digital touch key（RKC（Place of Origin：Japan）），Temperature and humidity control introduces the same channel coordination control method of P.I.D + S.S.R system.Have the function of automatic calculus, and can revise temperature & humidity change conditions to realize more accurate and stable temperature & humidity control.

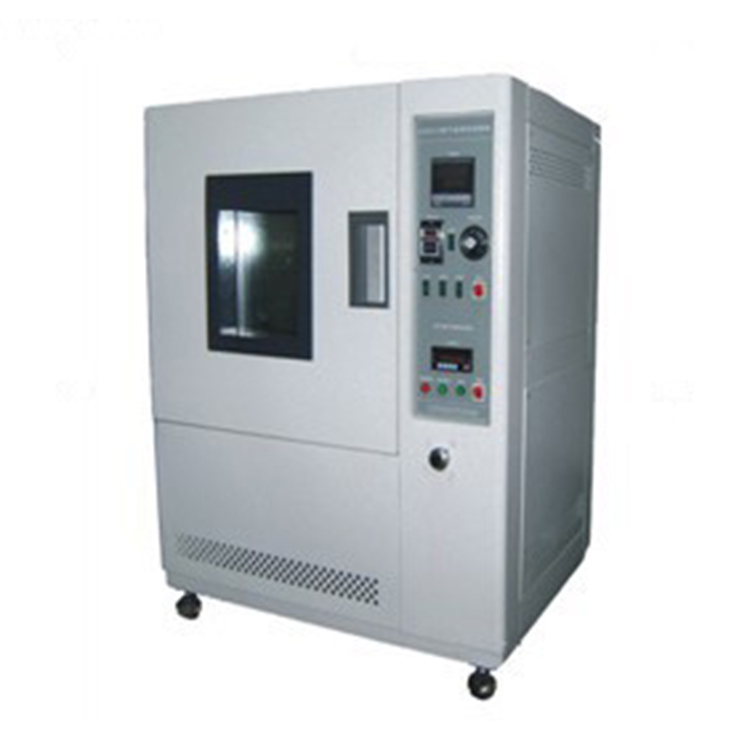

Air ventilation Aging Test Chamber,It is suitable for the thermal endurance test of electrical insulating materials and the air exchange aging test of electronic parts and components as well as plastic products. Test and judge the adaptability of products when stored and used in high-temperature environmental conditions; measure the properties of test specimens upon aging in high-temperature and barometric air and compare the results with that of the un-aged test specimens.
Touch Screen ▪ Automatic warning and Accurate temperature control
Imported P.I.D micro-computer S.S.R temperature controller of digital touch key（RKC（Place of Origin：Japan）），Temperature and humidity control introduces the same channel coordination control method of P.I.D + S.S.R system.Have the function of automatic calculus, and can revise temperature & humidity change conditions to realize more accurate and stable temperature & humidity control.
How it works: Oxidizes specimen by filling fresh air.
2-200 times/hour
(air change method: automatic air change under control of meter)
Air enter from the bottom and exhaust from the top
Air change hole diameter: top hole: 35mm (adjustable) → air change
Bottom hole: 40mm (fixed) → air exhaust
Excellence.Nuanced and comfortability
Seal: The double-layer high temperature resistant high-tension sealing strip between door and chamber of the equipment can ensure obturation of testing area.
Door handle: Introduce the door handle without counteraction for easy operation.
Feet wheel: High-quality fixable PU active wheels are installed on the bottom of the machine.
Technical parameters:
| Model No | GAVT-100 | GAVT-225 | GAVT-500 | GAVT-800 | GAVT-1000 | |||||
| Working room(L) | 100 | 225 | 500 | 800 | 1000 | |||||
| Inner chamber size(mm)W*H*D | 450*500*450 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |||||
| Exterior chamber size(mm)W*H*D | 1180*1350*750 | 1250*930*1800 | 1450*1100*2000 | 1450*1400*2100 | 1650*1480*2100 | |||||
| Turnplate Diameter | φ300mm | Φ400mm | φ600mm | φ700mm | Φ900mm | |||||
| Packaging volume(CBM) | 3 | 3.5 | 4.5 | 5.5 | 6 | |||||
| G.W.(KGs) | 320 | 350 | 400 | 600 | 700 | |||||
| Temperature range | +10℃～300℃RT+10℃~200℃, 300℃ | |||||||||
| Performance | Temp fluctuation | ±0.5℃ | ||||||||
| Temp departure | ±2℃ ～ ±3℃ | |||||||||
| Temp resolution | ±0.1℃ | |||||||||
| Heating up time | 30 | 40 | ||||||||
| Material | Exterior chamber material | Stainless steel plate+ powder coated | ||||||||
| Inner chamber material | SUS#304 stainless steel plate | |||||||||
| Insulation Material | PU Fiberglass wool | |||||||||
| System | Air circulation system | Cooling fan | ||||||||
| Heating System | SUS#304 stainless steel high-speed heater | |||||||||
| Controlling system | Digital electronic indicators+S.S.R.+PID | |||||||||
| Accessories | vacuum glass observation window,,cable port(50mm),chamber lamp，control status indicator lights,Specimen loading shelf(2pcs,position adjustable),Rotating test PAMS. | |||||||||
| Ventilation Volume | 5～200（3～250）Times/Hour | |||||||||
| Safety protection device | Over-heat protection circuit breaker,Control system overload protection,Overload indicator lamp. | |||||||||
| Power supply | AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz | |||||||||
| Power(KW) | 7 | 10 | 12 | 15 | 17 | |||||
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. | |||||||||
